Precision Transit-Time & Clamp-On Technology

Ultrasonic Flow Meter

Non-invasive clamp-on & inline transit-time ultrasonic flowmeters engineered for high-accuracy liquid and gas velocity measurement with zero pressure drop, zero pipe penetration, and minimal maintenance.

Talk to Specialist

Ultrasonic Flow Meter Overview

Ultrasonic flowmeters are commonly applied to measure the velocity of liquids that allow ultrasonic waves to pass, such as water, molten sulfur, cryogenic liquids, and chemicals. Transit time designs are also available to measure gas and vapor flow. Be careful because fluids that do not pass ultrasonic energy, such as many types of slurry, limit the penetration of ultrasonic waves into the fluid. In Doppler ultrasonic flowmeters, opaque fluids can limit ultrasonic wave penetration too near the pipe wall, which can degrade accuracy and/or cause the flowmeter to fail to measure. Transit time ultrasonic flowmeters can fail to operate when an opaque fluid weakens the ultrasonic wave to such an extent that the wave does not reach the receiver.

Click to Enlarge

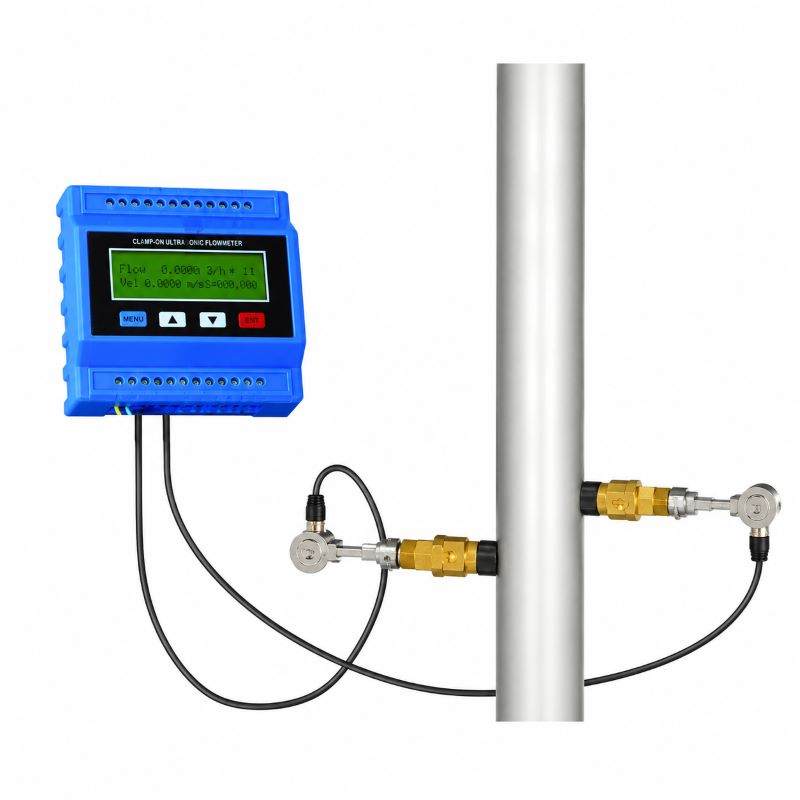

Ultrasonic Flow Meter

Feature

High Accuracy
Approved for custody transfer
High turndown/rangeability measure low and high pressure
Repeatable
Can clamp on pipe with no penetration
Tolerate extreme temperature
Long term reliability
No moving parts to replace or lubricate. So low maintenance cost

Application

In order of usage, water/wastewater industry, chemical, food and beverage, oil and gas (although not for oil and gas fluids but in support of the processes), power, pulp and paper, metals and mining, and pharmaceutical.

Manufacturer Specifications:

Fuji Honeywell Siemens Dwyer
